| Brand / Model |

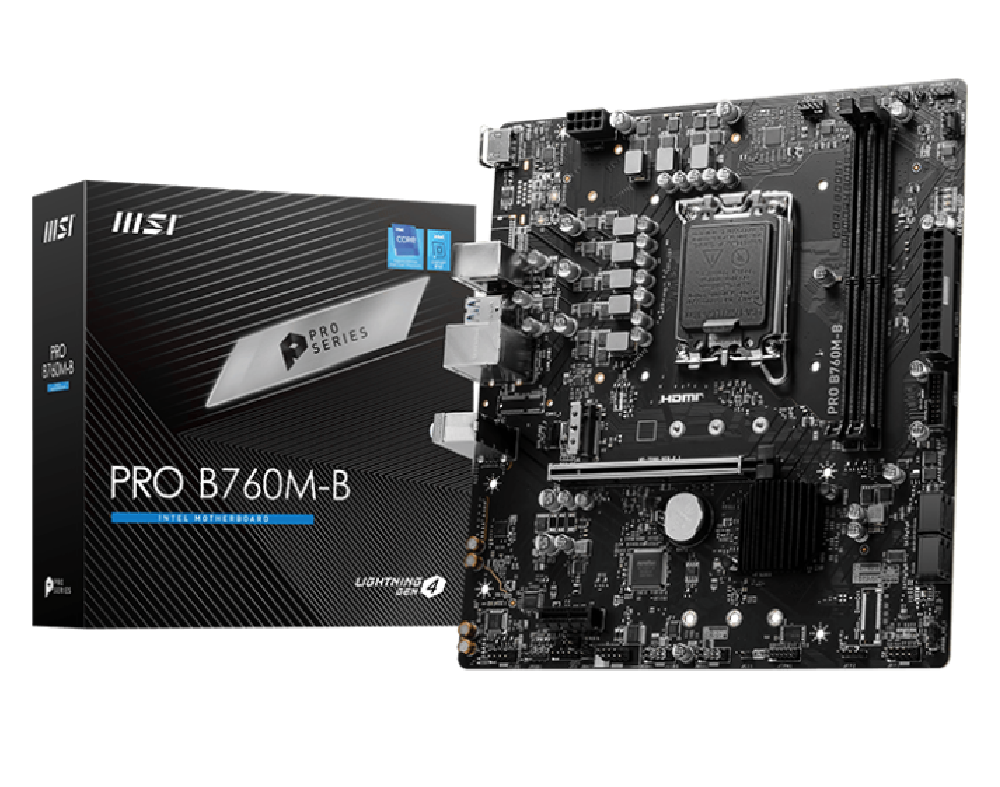

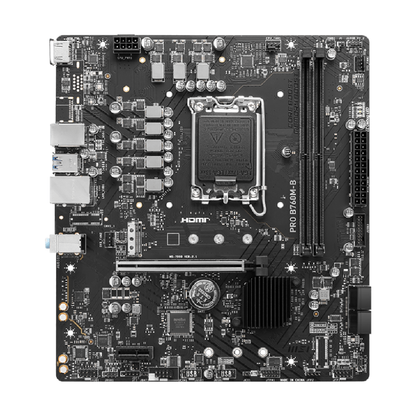

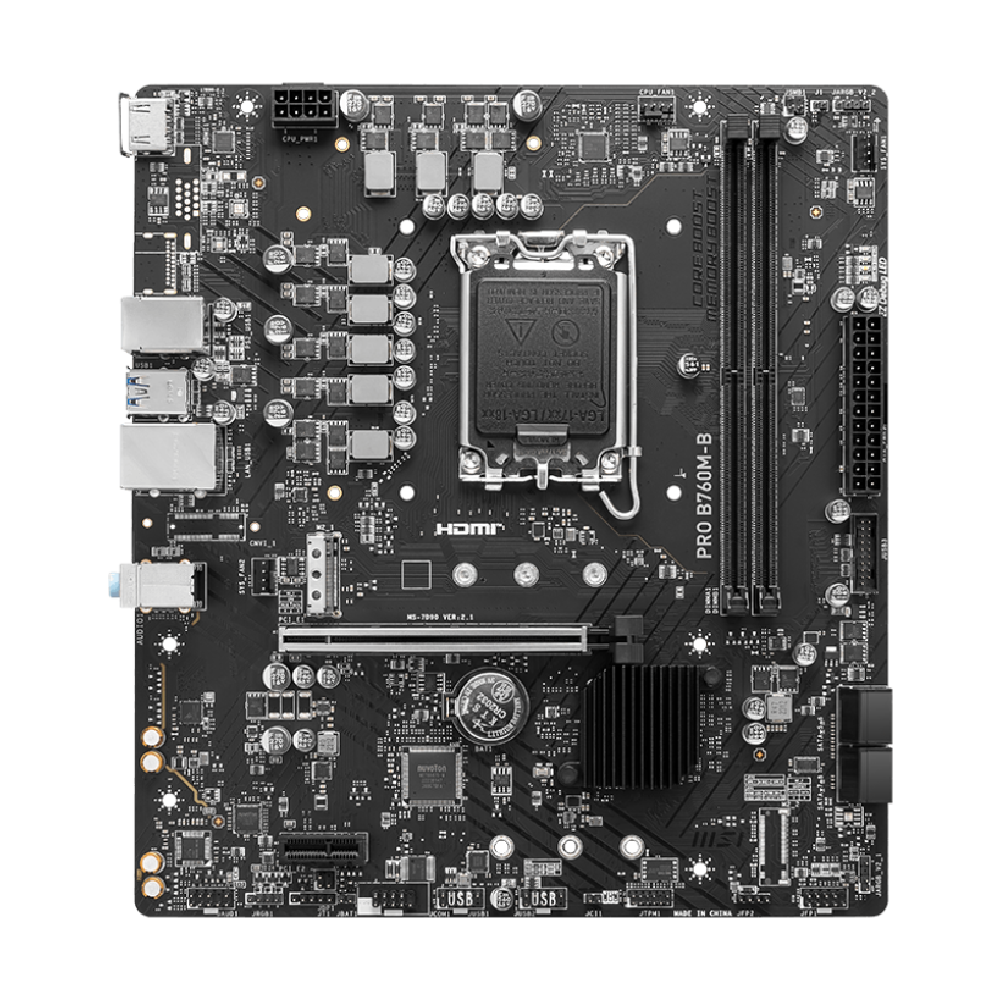

MSI PRO B760M-B DDR4 |
| CPU Support |
Supports 14th, 13th, and 12th Gen Intel Core™, Pentium® Gold, and Celeron® Processors |
| CPU Socket |
LGA 1700 |
| Chipset |
Intel® B760 |
| Form Factor |
Micro-ATX (mATX) - 220mm x 243.84mm |
| Memory Support |
• DDR4 Variant: 2 DIMMs, Dual-Channel up to 4800+(OC) MHz (Max 64GB)
|
| Expansion Slots |
• 1x PCIe 4.0 x16 slot (supports Steel Armor)
• 1x PCIe 4.0 x1 slot
|
| Display Outputs |
1x HDMI™ 2.1 port (Supports max resolution of 4K @ 60Hz - requires CPU with integrated graphics) |
| Storage Interfaces |
• 1x M.2 Gen4 x4 64Gbps slot (Supports 2280/2260/2242 devices)
• 4x SATA 6Gbps ports (Supports RAID 0, 1, 5, 10)
|

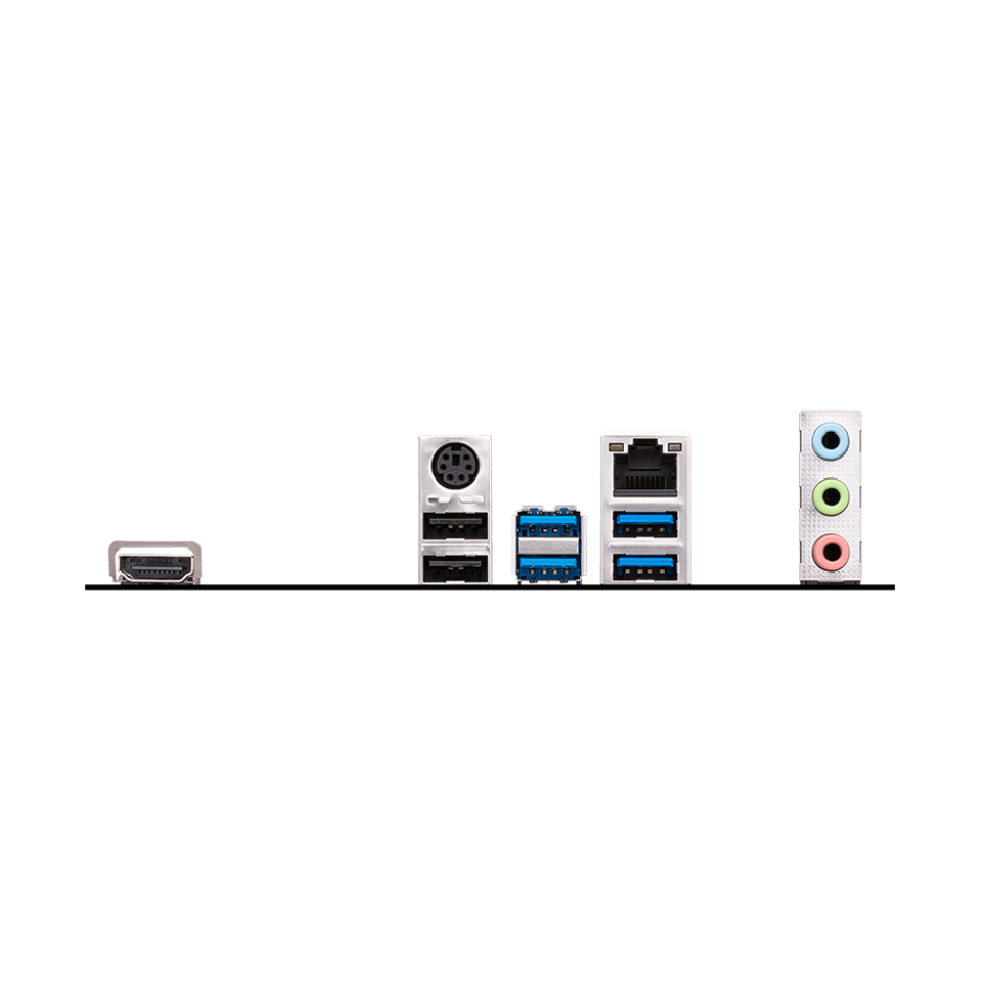

| USB Ports |
• Rear: 4x USB 3.2 Gen 1 5Gbps Type-A, 2x USB 2.0
• Front: 2x USB 3.2 Gen 1 5Gbps Type-A, 4x USB 2.0
|
| Networking (LAN) |
Realtek® RTL8125B 2.5Gbps LAN Controller |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio with Audio Boost |
| Internal Connectors |
1x CPU Fan, 2x System Fan, 2x Addressable V2 RGB (JARGB_V2) headers, 1x RGB LED header, TPM pin header |
| Diagnostics |
EZ Debug LEDs (4 LEDs indicating CPU, DRAM, VGA, and BOOT status) |
| Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
