| Brand & Line |

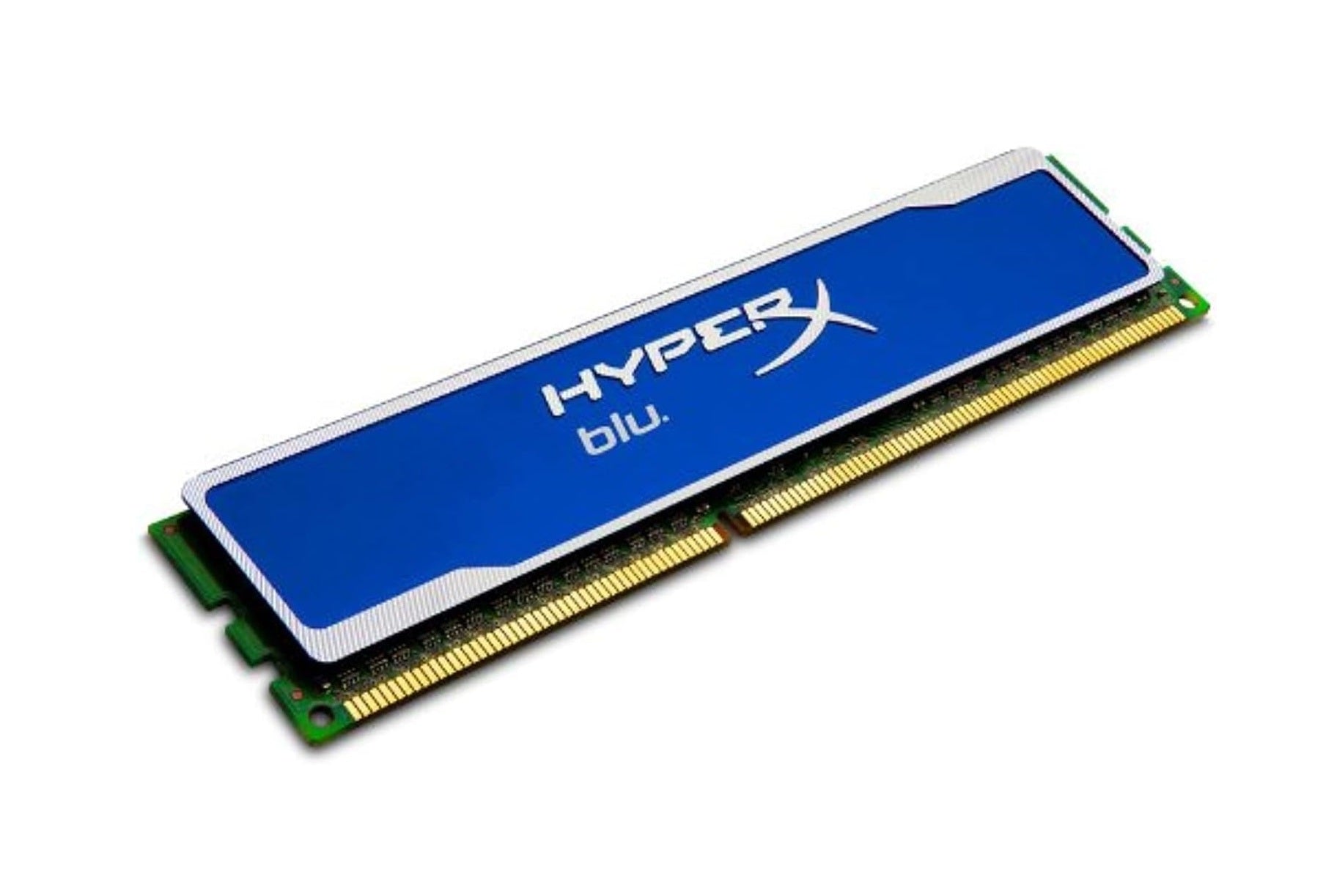

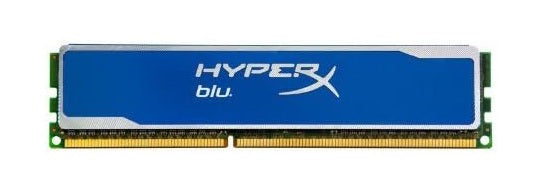

Kingston HyperX Blu |
| Part / Model Number |
KHX1600C10D3B1/8G |
| Memory Capacity |
8 GB (1 x 8GB single module) |
| Memory Type |
DDR3 SDRAM |
| Form Factor |
240-pin UDIMM (Desktop Memory) |
| Frequency Speed |
1600 MHz (PC3-12800) |
| CAS Latency (CL) |
CL10 |
| Tested Timings |
10-10-10 @ 1600 MHz |
| JEDEC Default Timings |
9-9-9 @ 1333 MHz |
| Operating Voltage |
1.5V (Standard DDR3) |
| ECC / Error Checking |
Non-ECC (Unbuffered) |
| Module Rank / Density |
Dual Rank 2Rx8 (Sixteen 512M x 8-bit FBGA chips) |
| Heat Spreader |
Signature Blue Anodized Aluminum |
| Intel XMP Support |
Yes (Auto-overclocking profile ready) |
| Pin Contacts |
Gold-plated contact fingers |
| Height Dimensions |
1.18 inches (30.00 mm) standard height |
| Operating Temperature |
0°C to 85°C |
