| Model |

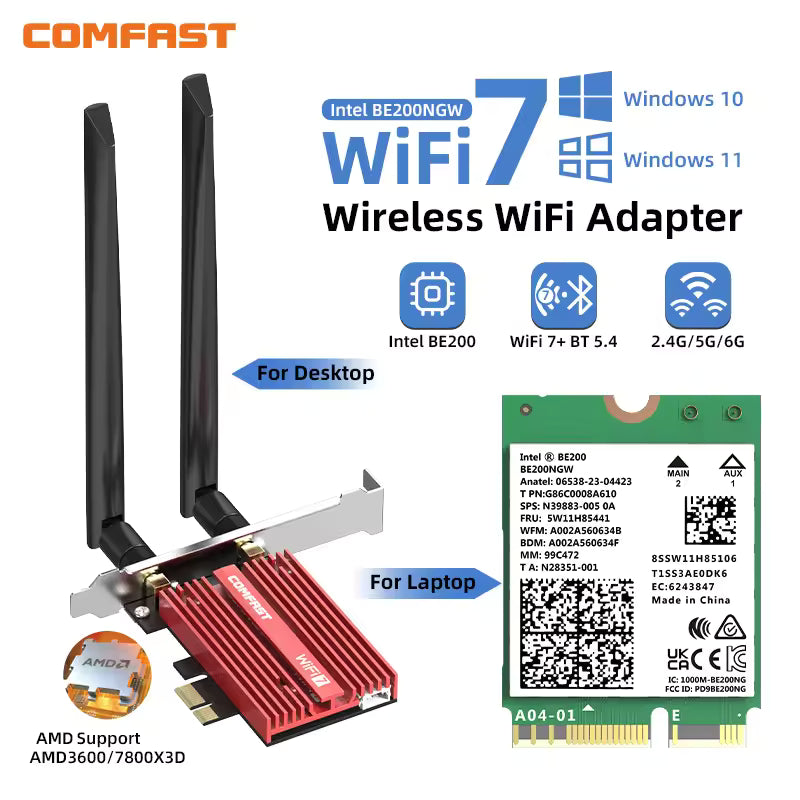

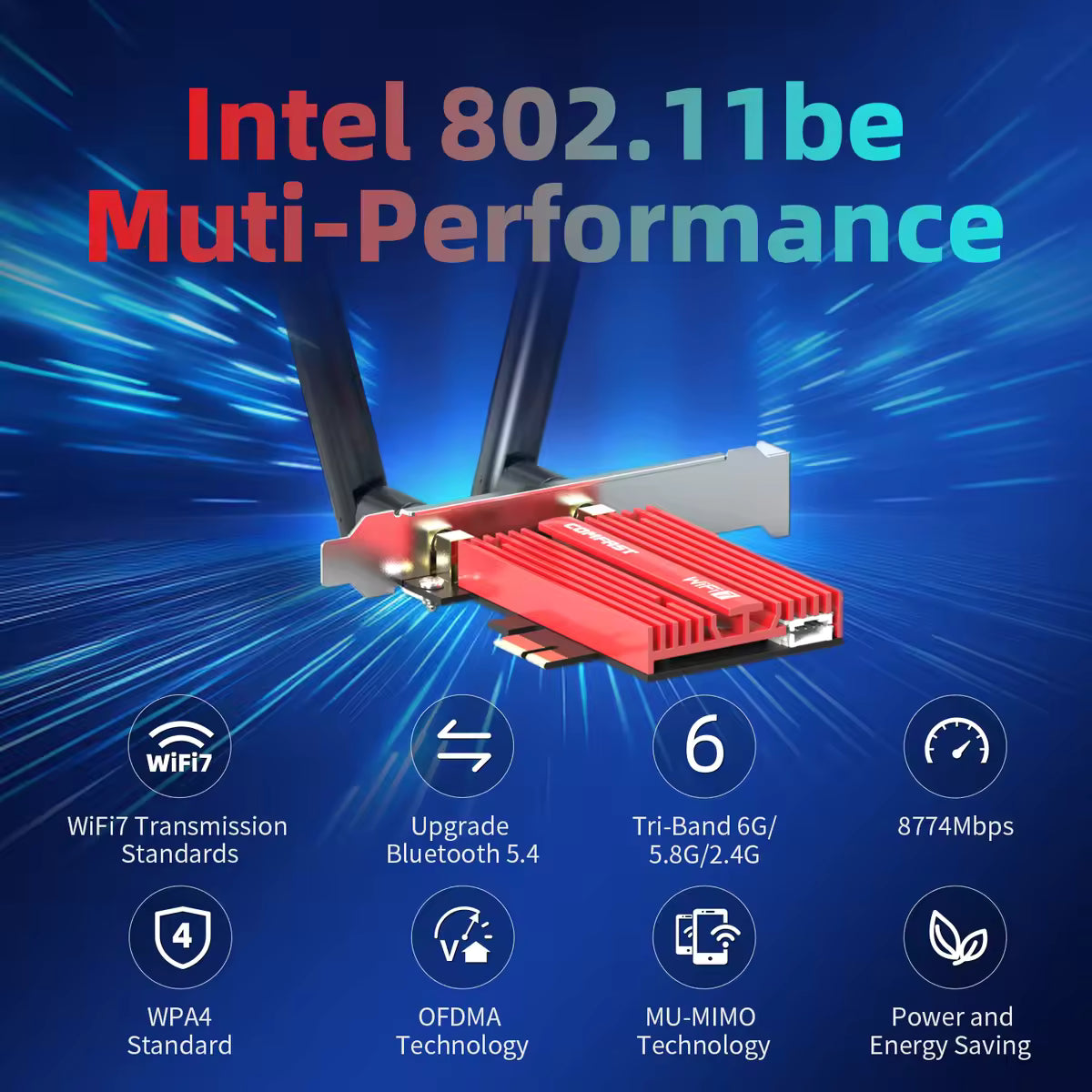

Comfast CF-BE200 MAX / Pro Series |
| Main Chipset |
Intel Wi-Fi 7 BE200 (BE200NGW) |
| Wireless Standards |
IEEE 802.11be (Wi-Fi 7), 802.11ax (Wi-Fi 6E/6), 802.11ac/a/b/g/n |
| Frequency Bands |
Tri-Band: 2.4 GHz, 5.8 GHz, and 6 GHz |
| Max Transfer Speed |
Up to 8774 Mbps Total:
• 6 GHz: Up to 5800 Mbps (320 MHz channel width)
• 5.8 GHz: Up to 2400 Mbps (160 MHz channel width)
• 2.4 GHz: Up to 574 Mbps
|
| Bluetooth Version |
Bluetooth 5.4 (Integrated audio and BLE features, up to 5.2 Gbps transfer speed) |
| Bus / Host Interface |
PCIe x1 (Fully compatible with PCIe x4, x8, and x16 motherboard slots) |
| Bluetooth Connection |
Internal 9-pin USB header cable (plugs into motherboard) |
| Antennas |
Dual high-gain omnidirectional external antennas |
| Key Wi-Fi 7 Technologies |
320 MHz Bandwidth, 4096-QAM (4K-QAM), Multi-Link Operation (MLO), MU-MIMO, OFDMA, TWT |
| Wireless Encryption |
WPA4, WPA3, WPA2-PSK/WPA-PSK, WEP |
| Cooling System |
Metal heatsink (Accordion-style heat dissipation shroud) |
| OS Compatibility |
• Windows 11 (64-bit – full Wi-Fi 7 / 6 GHz support)
• Windows 10 (64-bit)
• Linux Kernel
|
| Platform Compatibility |
Intel platforms required. (Note: Intel BE200 cards are generally incompatible with AMD CPUs/motherboards due to host-interface hardware dependencies). |
