| Model |

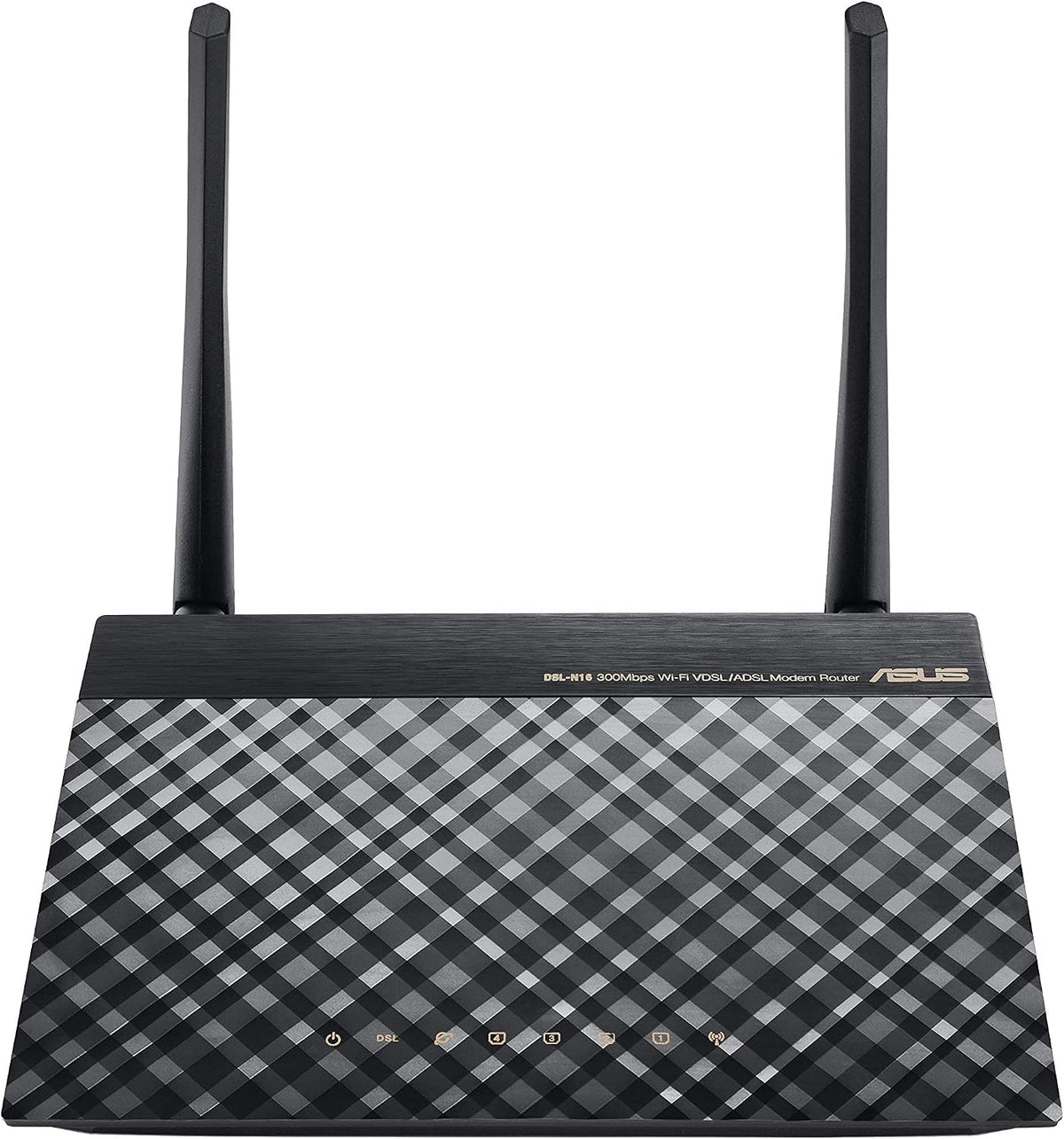

ASUS DSL-N16 |
| Device Type |
VDSL/ADSL Modem Router & Standalone Wi-Fi Router |
| Operating Frequency |
2.4 GHz (Single-band) |
| Max Wi-Fi Speed |
Up to 300 Mbps |
| xDSL Standards |
• VDSL2: Up to 200 Mbps downstream / 150 Mbps upstream (Profiles 8a–30a, Vectoring support)
• ADSL2/2+: Up to 24 Mbps downstream / 3.3 Mbps upstream
|
| Processor & Memory |
MediaTek MT7510 CPU |
| Antenna Type |
2 × External 2 dBi fixed/detachable antennas |
| Ethernet & Phone Ports |
• 1 × RJ-11 WAN Port (xDSL)
• 4 × RJ-45 10/100 BaseT Fast Ethernet LAN Ports (Port 1 switchable to Ethernet WAN)
|
| Physical Buttons |
Power Switch, Wi-Fi On/Off, WPS, Reset |
| Security & Firewalls |
64/128-bit WEP, WPA/WPA2-PSK, WPS support, SPI Firewall, DoS Protection |
| Software Features |
ASUSWRT Dashboard, Bandwidth Limiter (QoS), Parental Controls, Guest Network (up to 4 SSIDs), VPN Server (PPTP), IPTV support |
